Description
Freestanding Toilet Frame with Concealed Cistern
This freestanding toilet frame with concealed cistern is a self-supporting system for wall-hung toilets that does not require structural wall mounting. The L-shaped matte black support legs carry the load directly to the floor, making it ideal for renovations, stud walls and installations where wall fixing is not possible.
Design & Aesthetics

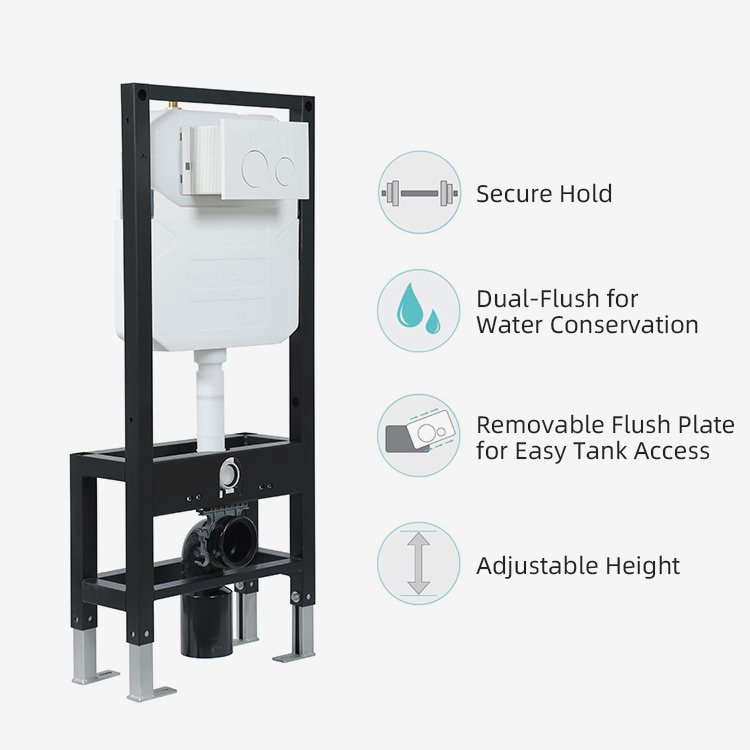

The sturdy L-shaped steel legs provide a stable, freestanding base while the white dual-flush cistern sits neatly within the frame. After tiling, only the flush plate and floating toilet remain visible – a clean, modern result that suits residential and hotel bathrooms alike.
Material & Durability
Heavy-gauge carbon steel frame with matte black anti-corrosion coating and galvanized L-shaped support legs ensures reliable, rust-resistant performance. The white cistern is made from high-strength plastic for durable, leak-proof operation with dual-flush efficiency.
Technical Specifications
| Model | M6601-ZL |
| Type | Freestanding wall-hung toilet frame with concealed cistern |
| Frame Finish | Matte black anti-corrosion coated steel with galvanized legs |
| Cistern Material | White high-strength plastic |
| Flush | Dual flush |
| Packing Size | 1140 x 530 x 240 mm |
| MOQ | 50 pcs per model |
| Lead Time | 25 – 35 days |
Weights and installation specifications available on request.
Dual Flush Water Efficiency
The concealed cistern uses a dual flush mechanism – a reduced flush for liquid waste and a full flush for solid waste – which cuts water use compared with a single-flush system. Reduced flush volumes of around 3 litres and a full flush of around 6 litres are typical for concealed cisterns, and the flush volume can be adjusted on site to match regional water-efficiency expectations. Lower water use per flush also reduces the load on the drain system in high-traffic buildings, which is why dual flush concealed systems are the standard choice for modern hotel and apartment projects.
Installation & Compatibility
The freestanding design simplifies installation: position the frame on the floor, level the L-shaped legs, connect water and drain, then build the wall around it. Compatible with standard concealed cistern flush plates – explore our toilet flush plates collection to complete the installation.
Installation Steps
The freestanding design carries the load through L-shaped floor legs, so it works where wall fixing is not possible – stud walls, glass partitions, or existing tiled walls you do not want to core. A typical installation follows these steps:
- Position and level the frame – stand the L-shaped legs on the floor and level – using the adjustable legs and built-in level points.
- Connect the water inlet and drain pipes to the frame’s outlets before closing the wall.
- Fit the flush mechanism and verify water-tightness with a test flush.
- Tile or plaster over the frame, leaving the access opening for the flush plate unobstructed.
- Mount the flush plate, hang the wall-hung toilet and run a full flush cycle to confirm performance.
Customization Options
OEM/ODM support for custom colors, flush plates, logos and packaging. Contact us for project-specific needs.
Quality Assurance
100% pre-shipment inspection on every unit, covering water-tightness and flush mechanism testing.
Frequently Asked Questions
Q: Does the freestanding frame need wall fixing?
A: No – the freestanding frame supports itself on the floor through the L-shaped legs. It is the right choice where the wall cannot take the load or where you want to avoid wall drilling.
Q: What seat height does it support?
A: Set the finished toilet seat at about 400 mm using the adjustable legs; the freestanding base keeps the frame level on uneven floors.
Q: Which flush plate fits this cistern?
A: The cistern accepts standard concealed cistern flush plates. Pair it with our toilet flush plates collection or order frame and plate as a matched set.
Q: Can the frame height be adjusted on site?
A: Yes — the adjustable legs allow fine height adjustment (0–220 mm), so you can set the finished seat height to about 400 mm, the recommended comfort height for most users.
Q: What flush volumes does the cistern offer?
A: The dual-flush mechanism provides a reduced flush and a full flush to balance water efficiency with performance. Exact volumes depend on your target market’s regulations and are available on request.
Q: Does the cistern work with third-party flush plates?
A: Yes — it works with most standard concealed cistern systems, including Geberit Sigma & Delta, R&T and WDI plates. All trademarks belong to their respective owners; our cisterns are independent aftermarket products.
